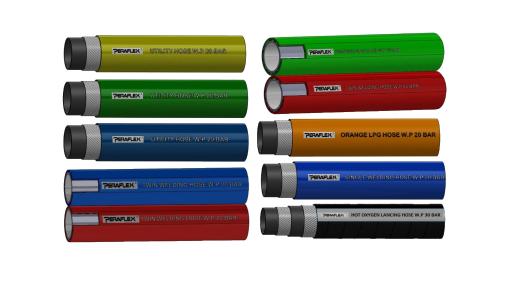

Flytech Industrial Gas hole is mainly used to transfer Natural Gas for welding and cutting applications.

UTILITY HOSE 20 BAR Tube: Black color of SBR blend compound. Cover: Yellow/Green/ Blue Color of EPDM blend compound. Abrasion, oil mist and Weather resistant. Surface: smooth with pin-pricked. Temperature: -35°C to +85°C *ULH code: Extrusion *ULHM code: Mandrel Build

TWIN WELDING HOSE T-GRADE 20 BAR Tube: Black color of CR compound. High impermeability and flame resistance. Cover: Blue/Green/Red color of CR compound. Flame, abrasion, and weather resistance. Temperature: -20°C to +80°C

TWIN WELDING HOSE RM-GRADE 20 BAR Tube: Black color of SBR blend-based compound. High impermeability. Cover: Blue/Green/Red color of CR compound. Flame, abrasion, and weather resistance. Temperature: -20°C to +80°C

TWIN WELDING HOSE R-GRADE 20 BAR Tube: Black color of SBR blend compound. High impermeability. Cover: Blue/Green/Red color of EPDM blend compound. Abrasion and weather resistant. Temperature: -20°C to +80°C

SINGLE WELDING HOSE 20 BAR Tube: Black color of SBR blend compound. High impermeability. Cover: Blue/Green/Red color of EPDM blend compound. Abrasion and weather resistant. Temperature: -20°C to +80°C

ORANGE LPG HOSE 20 BAR (T-GRADE) Tube: Black color of CR blend compound. LPG & Fire resistance. Cover: Orange color of CR compound. Abrasion, weather, and burn resistance. Temperature: -20°C to +80°C

ORANGE LPG HOSE 20 BAR Tube: Black color of NBR blend compound. LPG resistance. Cover: Orange color of EPDM blend compound. Abrasion, weather, and burn resistance. Temperature: -20°C to +80°C

HOT OXYGEN LANCING HOSE 30 BAR Tube: Black color of CR compound. Cover: Black color of CR compound. Flame retardant, electrical resistance, abrasion And weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord and fiberglass cloth. Withstands hot metal splashes Temperature: -20°C to +70°C

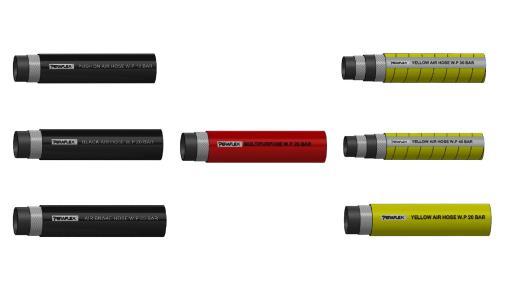

Flytech Industrial Air Hose is mainly used to transfer air and water in the heavy-duty areas, civil engineering, quarry, and mines.

YELLOW AIR HOSE 30 BAR MANDREL, YELLOW AIR HOSE 20 BAR Tube: The black color of the SBR blend compound. Oil mist resistance. Cover: Yellow color of EPDM blend compound. Abrasion and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +85°C Safety Factor: 3:1 YAH – Extrusion Hose YAHM – Mandrel Build Hose

PUSH ON AIR HOSE 10 BAR Tube: Black color of EPDM blend compound. Cover: Black color of EPDM blend compound. Abrasion and weather resistant. Oil mist resistance. Reinforcement: High tensile synthetic yarn. Temperature: -40°C to +100°C Safety Factor: 3:1

MULTIPURPOSE HOSE 20 BAR EXTRUSION & MANDREL Tube: Black color of NBR blend compound. Oil and non-aggressive chemical resistance. Cover: Red/Blue/Yellow/Green color of EPDM blend compound. Oil mist, abrasion and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +90°C Safety Factor: 3:1 *RMP: Extrusion hose *RMPM: Mandrel build hose

COMPRESSED AIR (BULL) HOSE 40 BAR Tube: Black color of synthetic rubber compound. Resistant to air. Cover: Yellow color of synthetic rubber compound. Abrasion and weather resistance. Reinforcement: Single steel wire braided. Temperature: -40°C to +90°C Safety Factor: 3:1

BLACK AIR HOSE 20 BAR Tube: Black color of SBR compound. Cover: Black color of SBR blend compound. Abrasion and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +85°C Safety Factor: 3:1 RAH: Extrusion RAHM: Mandrel Build

AIR BRAKE HOSE 20 BAR Tube: Black color of EPDM compound. Oil mist resistant. Cover: Black color of EPDM blend compound. Abrasion, heat, and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -35°C to +100°C Safety Factor: 3:1

Flytech Industrial Chemical Hose is mainly used to transfer industrial chemicals and acids.

XLPE CHEMICAL S&D HOSE 16 BAR Tube: XLPE. Aggressive chemical and acid resistance Cover: Green color of EPDM blend compound. Chemical, abrasion, and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -30°C to +60°C Safety Factor: 4:1

UHMWPE CHEMICAL S&D HOSE 16 BAR Tube: Translucent UHMWPE. Aggressive chemical and acid resistance Cover: Blue color of EPDM blend compound. Chemical, abrasion, and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -30°C to +60°C Safety Factor: 4:1

CORRUGATED UHMWPE CHEMICAL S&D HOSE 16 BAR Tube: Translucent UHMWPE. Aggressive chemical and acid resistance Cover: Blue color of EPDM blend compound. Chemical, abrasion, and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -30°C to +60°C Safety Factor: 4:1

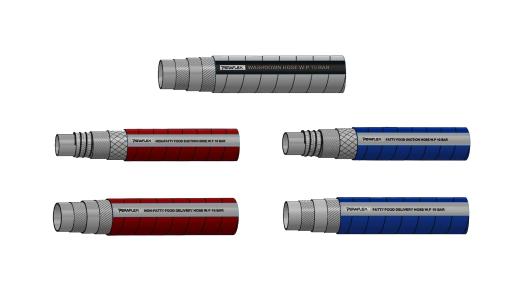

Flytech Industrial Chemical Hose is mainly used to transfer food and beverage-related product in a safer and more efficient manner.

WASHDOWN HOSE 10 BAR Tube: White color of EPDM compound. Heat and oil mist resistance. Cover: White color of EPDM blend compound. Heat and oil mist resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -30°C to +100°C

NON-FATTY FOOD SUCTION HOSE 10 BAR Tube: White color of food grade EPDM compound. Juice and alcohol beverages resistance. Cover: Red color of food grade EPDM compound. Abrasion and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C Safety Factor: 3:1

NON-FATTY FOOD DELIVERY HOSE 10 BAR Tube: White color of food grade EPDM compound. Juice and alcohol beverages resistance. Cover: Red color of food grade EPDM compound. Abrasion and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

FATTY FOOD SUCTION HOSE 10 BAR Tube: White color of food grade NBR blend compound. Cream and alcohol resistance. Cover: Blue color of food grade NBR blend compound. Abrasion and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C Sanification : max 150°C for a few minutes with steam; max 60°C for a few minutes with 2% nitric acid, 2% peracetic acid, 2% phosphoric acid, 5% caustic soda

FATTY FOOD DELIVERY HOSE 10 BAR Tube: White color of food grade NBR blend compound. Cream and alcohol resistance. Cover: Blue color of food grade NBR blend compound. Abrasion and ozone resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C Sanification : max 150°C for a few minutes with steam; max 60°C for a few minutes with 2% nitric acid, 2% peracetic acid, 2% phosphoric acid, 5% caustic soda

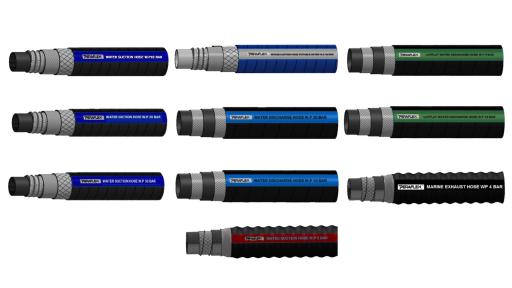

Flytech Industrial Water Hose is mainly used to discharge industrial wastewater, especially in the agriculture and construction sectors. It can also be used for irrigation and slurry medium.

WATER SUCTION HOSE 10 BAR Tube: Black color of NR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

WATER SUCTION HOSE 20 BAR Tube: Black color of SBR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

WATER SUCTION HOSE 30 BAR Tube: Black color of SBR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C Safety Factor: 3:1

WATER SUCTION HOSE (FG) POTABLE WATER 20 BAR Tube: White color of EPDM blend compound. Cover: Blue color of SBR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -20°C to +100°C

WATER DISCHARGE HOSE 10 BAR Tube: Black color of NR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

WATER DISCHARGE HOSE 20 BAR Tube: Black color of NR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

MARINE EXHAUST HOSE 4 BAR Tube: Black color of SBR blend compound. Oil resistance Cover: Black color of SBR blend compound. Oil, flame, seawater, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord and supported with helix wire. Temperature: -30°C to +100°C

LAYFLAT WATER DISCHARGE HOSE 5 BAR, LAYFLAT WATER DISCHARGE HOSE 10 BAR Tube: Black color of NR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

CORR WATER SUCTION HOSE WITH CUFF END 5 BAR Tube: Black color of NR blend compound. Cover: Black color of NR blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

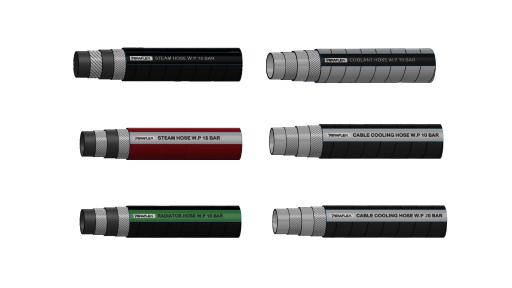

Flytech Industrial Steam Hose is mainly used in the industrial cleaning process and radiator systems. It can also be used for cooling electrical cables.

STEAM HOSE 18 BAR (Black) Tube: Black color of EPDM rubber compound. Resistant to high-temperature steam. Cover: Black color of synthetic rubber compound. Resistant to heat, oil, and weather. Reinforcement: Double steel wire braided. Temperature: Continuous steam up to +210°C. Able to sustain 232°C for intermittent use. Safety Factor: 10:1

STEAM HOSE 18 BAR Tube: Black color of EPDM rubber compound. Resistant to high-temperature steam. Cover: Red color of EPDM rubber compound. Resistant to heat and weather. Reinforcement: Double steel wire braided. Temperature: Continuous steam up to +210°C Safety Factor: 10:1

RADIATOR HOSE 10 BAR Tube: Black color of EPDM blend compound. Heat resistance. Cover: Black color of EPDM blend compound. Heat, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -30°C to 120°C Safety Factor: 3:1

COOLANT HOSE 10 BAR Tube: White color of EPDM compound. Cover: Wrapped fiberglass. Heat resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -30°C to +120°C Safety Factor: 3:1

CABLE COOLING HOSE 10 BAR Tube: White color of EPDM compound. Cover: Black color of Neoprene blend compound. Flame retardant, electrical resistance, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord and fiberglass cloth. Temperature: -30°C to +120°C Safety Factor: 3:1

CABLE COOLING HOSE 20 bar Tube: White color of EPDM compound. Cover: Black color of Neoprene blend compound. Flame retardant, electrical resistance, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord and fiberglass cloth. Withstands hot metal splashes and radiant heat up to +530°C Temperature: -40°C to +100°C Safety Factor: 3:1

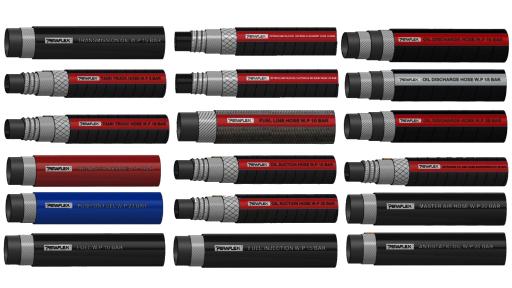

Flytech Industrial Oil Hose is mainly used in heavy-duty trucks and machinery for transferring oil and petroleum.

TRANSMISSION OIL HOSE 15 BAR Tube: Black color of NBR blend compound. Heat and oil resistance. Cover: Black color of NBR/PVC blend compound. Heat and oil resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +135°C

TANK TRUCK HOSE 5 BAR, TANK TRUCK HOSE 10 BAR Tube: Black color of NBR blend compound. Heat and oil resistance. Cover: Black color of NBR/PVC blend compound. Heat and oil resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +135°C

RED MASTER AIR HOSE 10 BAR Tube: Black color of SBR blend compound. Cover: Red cover of SBR blend compound. Oil mist, abrasion, and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -35°C to +80°C

PUSH ON FUEL HOSE 23 BAR Tube: Black color of NBR blend compound. Oil and fuel resistance Cover: Blue color of EPDM blend compound. Abrasion and weather resistant. Oil mist resistance. Reinforcement: High tensile synthetic yarn. Temperature: -40°C to +100°C

PETROLEUM OIL FUEL SUCTION & DISCHARGE HOSE 20 BAR Tube: Black color of NBR compound. Oil Resistance. Cover: Black color of NBR blend compound. Oil, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -20°C to +90°C

PETROLEUM OIL FUEL SUCTION & DELIVERY HOSE 10 BAR Tube: Black color of NBR compound. Oil Resistance. Cover: Black color of NBR blend compound. Oil, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -20°C to +90°C

OUTER BRAIDED FUEL LINE HOSE 10 BAR Tube: Black color of NBR blend compound. Fuel and oil resistance Cover: Heat resistant textile yarn. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +70°C

OIL SUCTION HOSE 10 BAR, OIL SUCTION HOSE 20 BAR Tube: Black color of NBR blend compound. Oil resistance. Cover: Black color of NBR blend compound. Oil, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord and supported with helix wire. Embedded antistatic copper wire. Temperature: -20°C to +90°C

OIL DISCHARGE HOSE 10 BAR, OIL DISCHARGE HOSE 15 BAR, OIL DISCHARGE HOSE 20 BAR Tube: Black color of NBR blend compound. Oil resistance. Cover: Black color of NBR blend compound. Oil, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +90°C

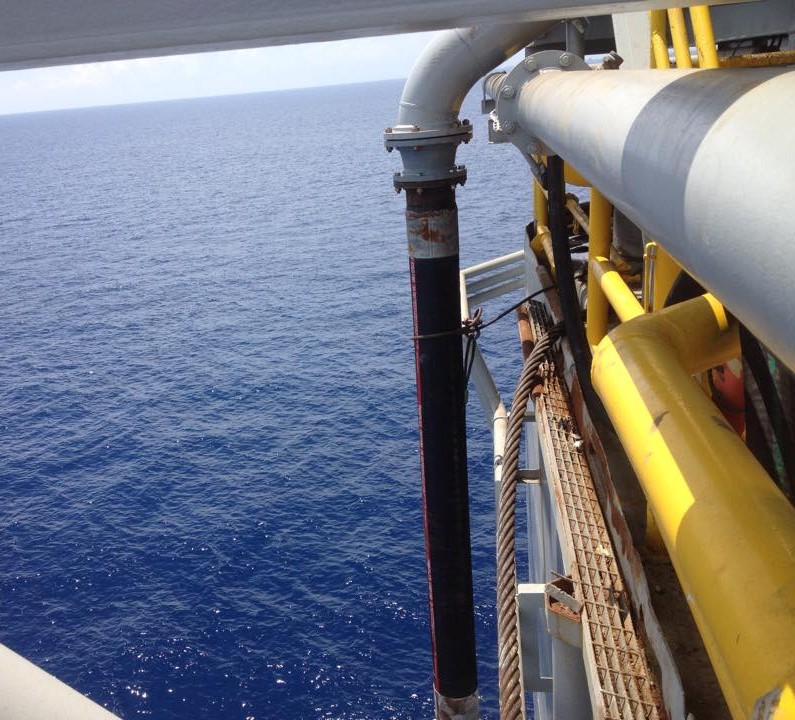

OFFSHORE OIL S&D BUNKERING HOSE 20 BAR Tube: Black color of special NBR compound. Fuel resistance Cover: Black color of NBR blend compound. Oil, abrasion, and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -20°C to +100°C

MASTER AIR HOSE 20 BAR Tube: Black color of EPDM blend compound. Oil resistance. Cover: Colored cover of SBR blend compound. Oil mist, abrasion, and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -35°C to +80°C

FUEL INJECTION HOSE 15 BAR Tube: Black color of NBR compound. Gasoline and diesel resistance Cover: Black color of NBR compound. Fuel, abrasion and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -30°C to +150°C

FUEL HOSE INCHES SIZE 10 BAR Tube: Black color of NBR compound. Gasoline and diesel resistance. Cover: Black color of NBR compound. Fuel, abrasion and weather resistance. Reinforcement: High tensile synthetic yarn. Temperature: -20°C to +80°C

ANTISTATIC OIL HOSE 20 BAR Tube: Black color of NBR blend compound. Oil resistance. Cover: Black color of NBR/PVC blend compound. Abrasion and weather resistance. Reinforcement: High tensile synthetic yarn incorporated with copper wire. Temperature: -20°C to +70°C

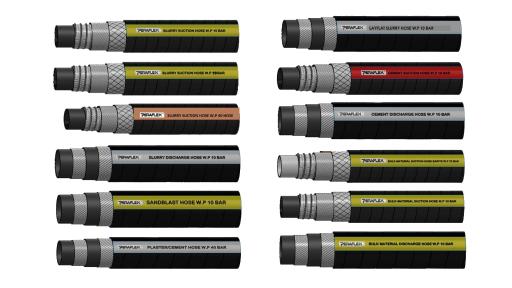

Flytech Material Suction and Discharge Hose are mainly used for transferring construction material such as sand, gravel, grain, cement, slag, barite, bentonite, or any other slurry medium. It is also used for sandblasting applications.

SLURRY SUCTION HOSE 10 BAR, SLURRY SUCTION HOSE 20 BAR, SLURRY SUCTION HOSE 40 BAR Tube: Black color of NR blend compound. Oily mud resistance. Cover: Black color of SBR blend compound. Sea water resistant, abrasion, and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

SLURRY DISCHARGE HOSE 10 BAR Tube: Black color of NR blend compound. Oily mud resistance. Cover: Black color of SBR blend compound. Sea water resistant, abrasion, and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

SANDBLAST HOSE 10 BAR Tube: Antistatic black NR blend compound. High abrasion resistance. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

PLASTER CEMENT HOSE 40 BAR Tube: Antistatic black NR blend compound. High abrasion resistance. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -30°C to +80°C

LAYFLAT SLURRY DISCHARGE HOSE 10 BAR Tube: Black color of NR blend compound. Oily mud resistance. Cover: Black color of SBR blend compound. Sea water resistant, abrasion, and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

CEMENT SUCTION HOSE 10 BAR Tube: Antistatic black SBR blend compound. High abrasion resistance. Cover: Black color of SBR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

CEMENT DISCHARGE HOSE 10 BAR Tube: Antistatic black SBR blend compound. High abrasion resistance. Cover: Black color of SBR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

BULK MATERIAL SUCTION HOSE BARITE 20 BAR Tube: White EPDM blend compound. High abrasion resistance. Cover: Black NR blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Embedded with antistatic copper wire. Temperature: -30°C to +100°C

BULK MATERIAL SUCTION HOSE 10 BAR Tube: Antistatic black NR blend compound. High abrasion resistance. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire. Temperature: -20°C to +80°C

BULK MATERIAL DISCHARGE HOSE 10 BAR Tube: Antistatic black NR blend compound. High abrasion resistance. Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord. Temperature: -20°C to +80°C

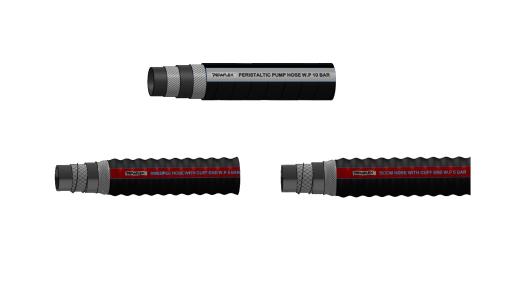

Flytech Peristaltic Pump Hose is to convey or transfer high-density fluid. As for the Vacuum Hose, it is used for full vacuum abrasion application.

PERISTALTIC PUMP HOSE 40 BAR Tube: Black color of NR blend compound. High abrasion resistance Cover: Black color of NR blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord.

CORR SWEEPER HOSE WITH CUFF END 5 BAR Tube: Black color of NR compound. Abrasion resistance. Cover: Black color of EPDM blend compound. Abrasion and weather resistance. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire.

CORR BOOM HOSE WITH CUFF END 5 BAR Tube: Black color of NR compound. Abrasion resistance. Cover: Black color of EPDM blend compound. Abrasion and weather resistant. Reinforcement: Multiple layers of high tensile synthetic cord supported with helix wire.

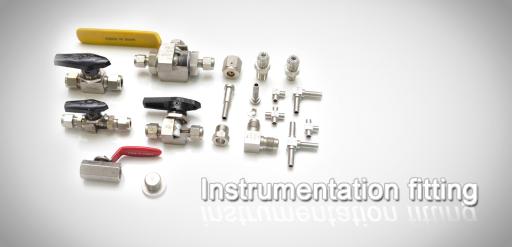

Couplers are used in a fluid or pneumatic system for connection and to ensure their content and pressure is maintained.
