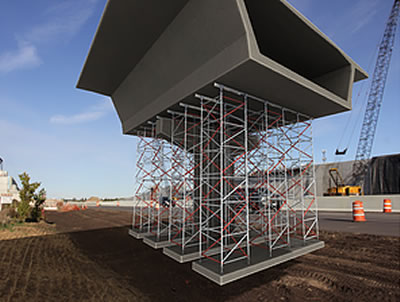

Aluminium Shoring Tower Dscaff DXS Alloy Bridging
As the saying goes ‘simple is better’, that mirrors well in our aluminium shoring system with minimal amount of parts that make up the structures. Despite its lightweight and simplicity, each tower is capable for working load of up to 22tonnes (55kN per leg). Main component are alloy frames and vertical braces with easy clip-in-hook connection. Erection can be easily done either vertically with platform and ladders, or horizontal assembly of towers on the ground and subsequent lifting with crane.
Commercial Construction
Non-residential Construction
High Rise Building
Bridge Deck
Tunnels
Elevated Highways / Flyover
MRT / Underground Tunnel
Megastructures
Large Span Building
Non-residential Construction
High Rise Building
Bridge Deck
Tunnels
Elevated Highways / Flyover
MRT / Underground Tunnel
Megastructures
Large Span Building
Aluminium
Aluminium (Alloy)
NA
| Feature | Performance |
|---|---|
| Easy installation | Quick assembly and dismantling with frames. Reduced number of items, easy erection. |
| Durability | Sturdy and long-lasting (high strength aluminium alloy) |
| Specification | Properties |
|---|---|
| Dimension (L x W x H) | Module Sizes of towers : 1.5m Frames : 1.1m high Standard heights up to 12m, special up to 20m. |
NA
NA
NA
| Company | Installation | Minimum Order | Cover area |
|---|---|---|---|
| No Result found. | |||
No Photo & Brochure available
