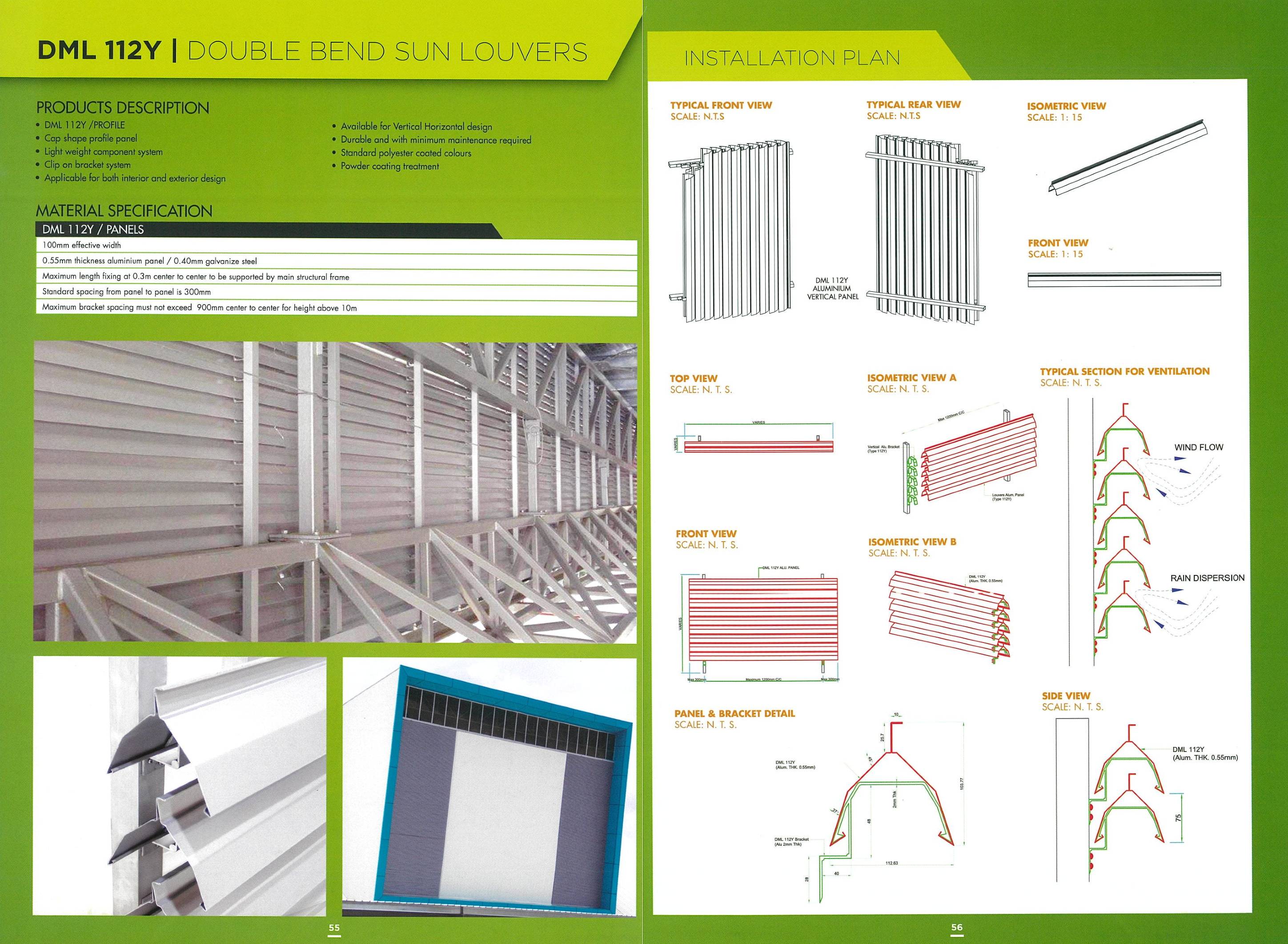

DML Double Bend Sun Louver 112Y | Aluminium Louvers DML Metal and Aluminium Ventilation Louvers
DML Double Bend Sun Louver is also known as DML 112Y/ PROFILE. The sun louver comes with the ventilation function as the panels are designed to control airflow and disperse rain. This louvre is easy to install and stable. DML Double Bend Sun Louver is made from aluminium that allows louvre to be tough and last long. DML preforms powder coating treatment to Double Bend Sun Louver 112Y as a protection layer for the aluminium louvre from scratches, dust, and rust. These aluminium louvers are applied on cap shape profile panel with the lightweight component system. DML 112Y aluminium louvers apply clip-on bracket system to enhance the performance of the overall system.
DML Double Bend Sun Louver 112Y offers a variety of louvers in different dimension and shape. The structure and architectural buildings are definitely enlightened by these aluminium louvers coated with standard polyester colours. DML Double Bend Sun Louver 112Y is suitable for vertical and horizontal designed internally as well as externally. The louvre is perfectly applicable to create an innovative and elegant design in offices buildings, commercial complexes, universities colleges, and others.
Metal Louvers
Aluminium , Galvanized steel
NA
Feature | Performance |
---|---|
Durable | Tough and able to withstand pressure, heat, and tear |
Lightweight | Applies lightweight component system |
Cost saving | Required minimum maintenance |
Energy saving/efficient | Yes |
Environmental friendly | Materials used are reusable and recyclable which cause no harm to the environment |
Specification | Properties |
---|---|
Panel size effective width | 100mm |
Panel thickness | Aluminium: 0.55mm Galvanized steel : 0.40mm |
Maximum length fixing at centre to centre supported by main structural frame | 0.3m |
Standard spacing from panel to panel | 300mm |
Maximum bracket spacing center to center fro height above 10m | Must not exceed 900mm |
NA
NA
NA
Company | Installation | Minimum Order | Cover area |
---|---|---|---|
(Ceiling and Louvre Manufacturer) | No | 0 | Cyberjaya, Johor, Kedah, Kelantan, Kuala Lumpur, Labuan, Malacca, Negeri Sembilan, Pahang, Penang, Perak, Perlis, Putrajaya, Sabah, Sarawak, Selangor, Terengganu |
No Result found. |
No Photo & Brochure available
