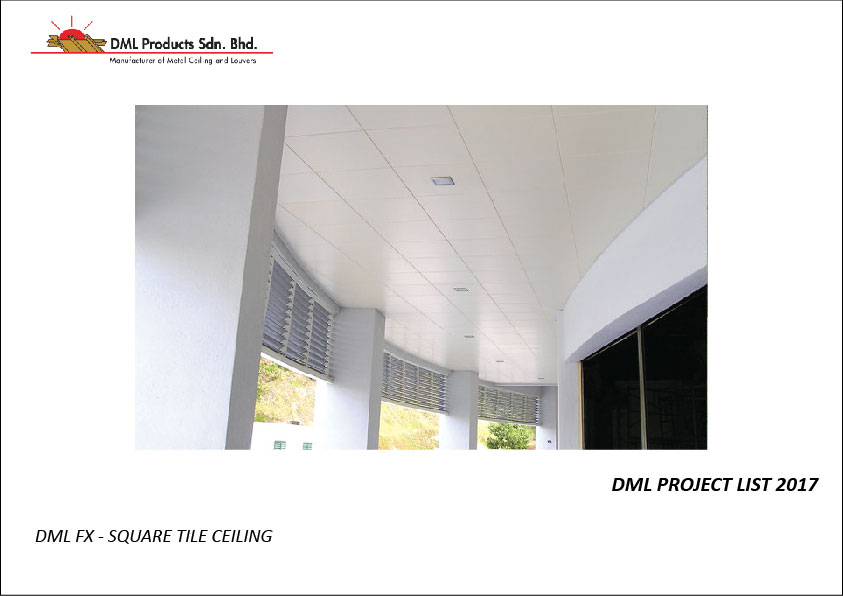

DML FX Square Tile Ceiling is made of multiple square shape tiles installed on the ceiling. DML FX Square Tile Ceiling is high-quality, reliable and easy to install. This tile ceiling is mainly composed of aluminium with minimum aluminium zinc components. The aluminium ceiling is very similar to DML TX Square Tile Ceiling but applies clip-in triangle carrier on square panels profile to create no visible joint on the external appearance of the aluminium ceiling. This approach provides a smooth and even surface that makes the aluminium ceiling looks clear and simple. DML offers standard powder coating as protection from dust, rust, and scratches. The coating colours are based on your preference. DML FX Square Tile Aluminium Ceiling offers non- perforated or perforated panels that provide additional functions in noise insulation with the application of black tissue or acoustic treatment. DML square tile ceiling enhances the excellent appearance to all structural buildings.
DML tile ceiling is the fastest way to get a new ceiling. DML FX aluminium ceiling is very similar to DML TX Square Tile Ceiling but applies clip-in triangle carrier on square panels profile to create no visible joint on the external appearance of the aluminium ceiling. This approach provides a smooth and even surface that makes the appearance of the structural building to be clear and simple. DML tile ceiling is designed uniquely and suitable for all internal designs as well as external designs. The uniqueness of DML tile ceiling is suitable to be installed at hospitals, offices, showrooms, and others.
Ceiling
Aluminium, Zinc aluminium
• FX 606E-1
• FX 606E-2
Feature | Performance |
---|---|
Durable | Tough and able to withstand pressure, intense heat, tear and last for extended years |
Sound insulation | Noise-insulating multi-chamber frames are applied to reduce the noises |
Cost saving | Required minimum maintenance and the colour will not be easily faded |
Energy saving/efficient | Yes |
Environmental friendly | Materials used are reusable and recyclable which cause no harm to the environment |
Specification | Properties |
---|---|
Square tile panel size | 600mm x 600mm |
Aluminium panel thickness | 0.7mm: FX 606E-1 [Plan non-perforated] FX 606E-2 [Perforated] |
Accessories lay into ceiling tee | Triangle carrier, hanging accessory, Triangle connector |
Suspension type | 14 gauge G.I. wire hanger [by installer] 0.5mm G.I. bracing [recommended spacing at 1200mm centre to centre] |
Edge & corner finished aluminium zinc thickness | 0.4mm L angle |
NA
NA
NA
