DML Strip Ceiling G Profile | Steel & Aluminium Ceiling DML Strip Ceiling | Metal and Aluminium Strip and Open Ceiling
DML Strip Ceiling G profile is strip ceiling with recess groove joints on box shape profile panel. The joints provide a typical installation that allows the ceiling to be stable. Plain finishes or perforated panels are applied for acoustic treatment. DML uses single multi-carrier to accommodate different panel width. The ceiling is able to deflect and blend stress of wind velocity at 35m/s 126km/hr. The products are made from Galvanized finishes and aluminium. The surface is protected by DML polyester from scratches, dust, and rust. Therefore, the DML strip ceiling G profile is suitable for various requirements.

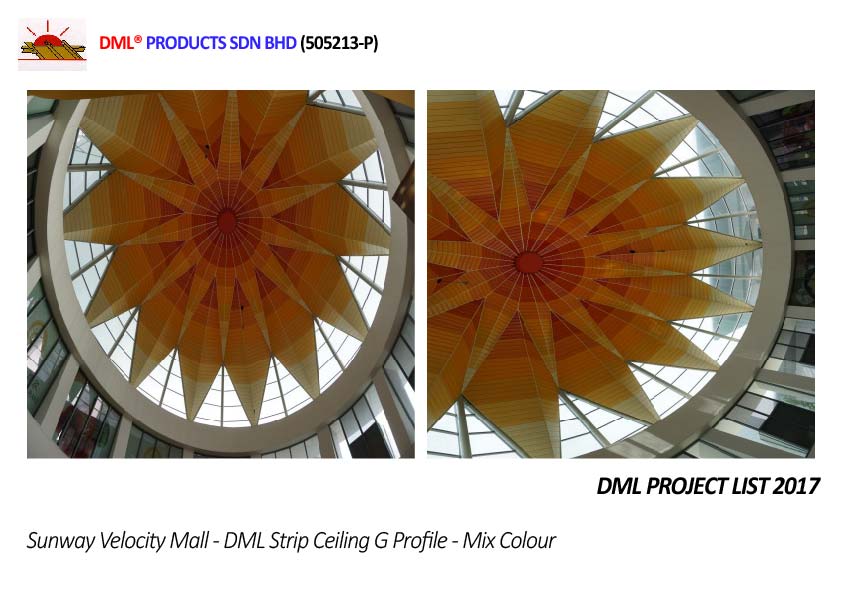

DML Strip Ceilings G profile offers unique and elegant designs that allow your buildings to be stylish and modernized. DML strip ceiling G profile is applicable to hotels, commercial complexes, high rise condominiums, airport terminals, light rail transits stations, and others, that enhances the buildings internal appearance as well as the external structure.
Ceiling
Aluminium, Zinc Aluminium
• DML 100G
• DML 150G
• DML 200G
• DML 300G
• DML 400G
• DML 450G
| Feature | Performance |
|---|---|
| Durable | Tough enough to withstand pressure, intense heat,tear and last for extended years |
| Sound insulation | Through noise-insulating multi chambers frames |
| Lightweight | Applied lightweight component system |
| Energy saving/efficient | Yes |
| Environmental friendly | Materials used are reusable and recyclable which cause no harm to the environment |
| Specification | Properties |
|---|---|
| Panel size effective width | Recess groove with 16mm(W) x 12mm (D): DML 100G 100mm effective width DML 150G 150mm effective width DML 200G 200mm Recess groove with 26mm(W) x 20mm (D): DML 300G 300mm DML 400G 400mm DMl 450G 450mm |
| Thickness | Aluzinc/Zinc Aluminium panels: 0.4 mm [gross wt: 5.10kg/m²]: DML 100 G DML 150 G 0.5 mm [ gross wt: 5.40kg/m²]: DML 200 G Aluminium panel: 0.5mm [ gross wt: 2.05kg/m²]: DML 100G DML 150G 0.6mm [ gross wt: 2.10kg/m²]: DML 200G 0.6mm: DML 300G 0.7mm/0.8mm : DML 400G DML 450G |
| Carrier Size | 30mm(W) x 35mm(D) x 4880mm(L) |
| Galvanized steel carrier thickness | 0.7mm |
| Suspension type | 14 gauge G.I wire hanger |
| Galvanized steel bracing suspension thickness | 0.5mm |
| End and corner finished thickness | 0.9mm [adonized T-joint] 0.4mm [ aluzinc colour to match U channel] |
NA
NA
NA
| Company | Installation | Minimum Order | Cover area |
|---|---|---|---|
| (Ceiling and Louvre Manufacturer) | No | 0 | Cyberjaya, Johor, Kedah, Kelantan, Kuala Lumpur, Labuan, Malacca, Negeri Sembilan, Pahang, Penang, Perak, Perlis, Putrajaya, Sabah, Sarawak, Selangor, Terengganu |
| No Result found. | |||
No Photo & Brochure available
