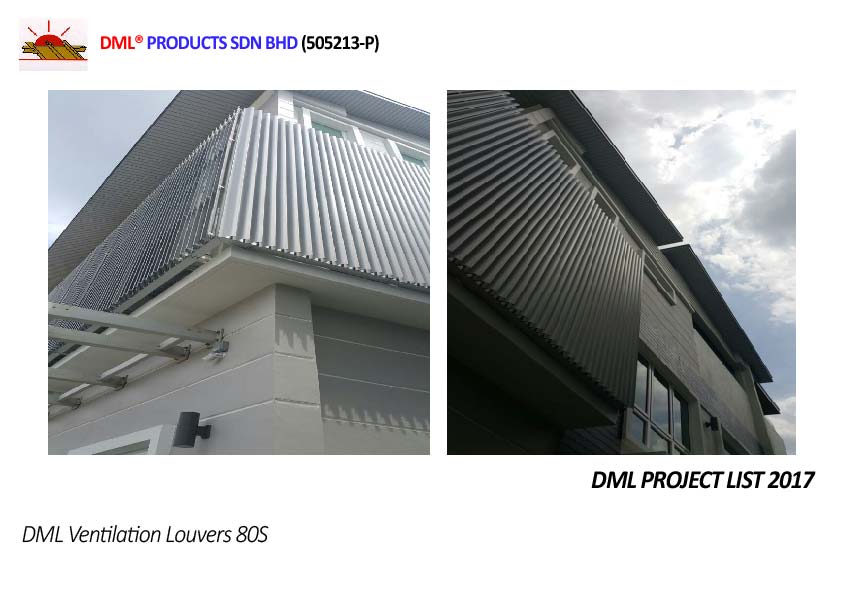

DML Vertical Aluminium Sun Louver 80S | Steel & Aluminium Louvers DML Metal and Aluminium Ventilation Louvers
DML Vertical Aluminium Sun Louver 80S is a high-quality and reliable louvre that comes with an additional function in ventilation. DML 80S louvre is made from aluminium and galvanized finishes which make the louvre extremely durable and able to withstand dynamic weather. The steel louvers are coloured based on the standard polyester coatings. DML louvre consists of S shape profile panel. These steel louvers are designed uniquely to deflect and blend the stresses at design wind velocity of 35m/s or 126km/ hour.
DML 80S vertical aluminium louvers are well-designed sun louver which is highly suitable for interior and exterior designs. The bracket used is concealed that enhances the appearance of structure with no visible marks on the panel. These steel louvers are applicable in vertical designs. The bracket system applies in DML 80S aluminium louvers are clip-on and lightweight. This improves the efficiency of the system. DML aluminum louvers are applicable to exterior cladding and facade such as offices, restaurants, commercial complexes, railway transit, and others.
Exterior cladding and facade
Aluminium, Galvanized steel
• DML 80S
Feature | Performance |
---|---|
Durable | Tough and able to withstand pressure and tear |
Lightweight | Applies lightweight components |
Cost saving | Required minimum maintenance |
Energy saving/efficient | Yes |
Environmental friendly | Materials used are reusable and recyclable which cause no harm to the environment |
Specification | Properties |
---|---|
Panel size effective width | 95mm |
Aluminium panel thickness | 0.55mm |
Maximum length fixing centre to centre supported by main structural frame | 0.3m |
Standard spacing from panel to panel | 90mm |
Maximum bracket spacing centre to centre for height above 10m | Must no exceed 900mm |
NA
NA
NA
Company | Installation | Minimum Order | Cover area |
---|---|---|---|
(Ceiling and Louvre Manufacturer) | No | 0 | Cyberjaya, Johor, Kedah, Kelantan, Kuala Lumpur, Labuan, Malacca, Negeri Sembilan, Pahang, Penang, Perak, Perlis, Putrajaya, Sabah, Sarawak, Selangor, Terengganu |
No Result found. |
No Photo & Brochure available
