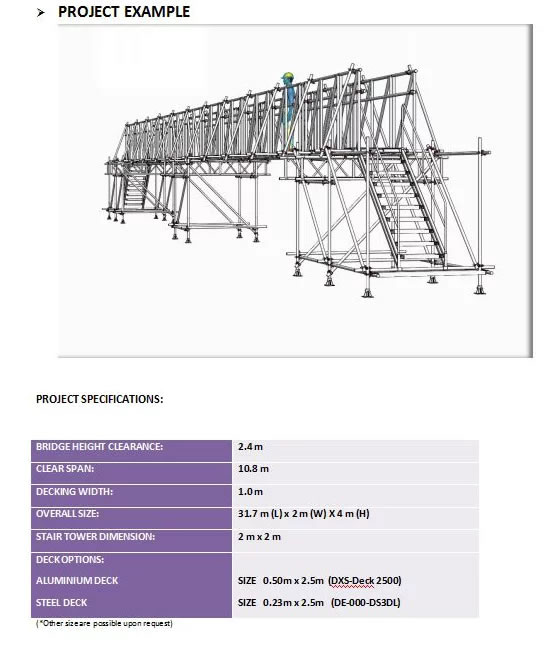

Dscaff DXS Temporary Bridge Footbridge Dscaff DXS Alloy Bridging

Short Span Pedestrian Bridge (SSPB) utilize modular alloy frame for the main truss connected together with spigots. Plan bracing and side bracing using standard tubes and coupler arrangement. Decking which can be either Aluminium deck with plywood or steel deck sits on bottom chord of the trusses. Standard bridge width is 1.0m and can span up to 16m length. Complete bridge assembly can be carried out on the ground before lifted into position by cranes. Assembly is faster with trusses connected with spigots, and bracing utilizing clip-in-hook connection.

Construction sites ,e.g. temporary crossover on public highway
Footbridge across river
Footbridge walkway for emergency relief operation,e.g. flooding
Railway stations refurbishment
Any situations where public access need to be maintained while construction work is in progress.
