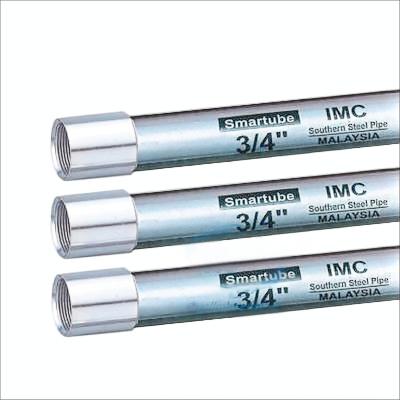

Intermediate Metal Conduit IMC Smartube | Steel Conduit Pipe Outdoor Application
Intermediate Metal Conduit IMC Smartube has a thicker and heavier steel raceway than EMT. It provides improved protection in various environments and electrical wiring in more severe conditions. IMC is also galvanized for corrosion protection in various lengths and trade sizes.
IMC is best suited for outdoor and industrial applications where resistance to impact is required. Extensively used in commercial buildings, factories, and places where extra physical protection of electrical wiring is needed. Normally, IMC is deployed owing to the reliability that it provides in conditions worse than EMT.
Tube / Pipe / Bar
Steel, Galvanized (Zinc-coated/Iron)
NA
Feature Performance
Cost savingYes
Impact ResistantYes
Corrosion resistantYes
Weather resistantYes
Specification Properties
Trade Size Designator16, 21, 27, 35, 41, 53, 63, 78, 91, 103 mm
1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 3-1/2, 4 In
Nominal Outside Diameter20.7, 26.1, 32.8, 41.6, 47.8, 59.9, 72.6, 88.3, 100.9, 113.4 mm
0.815, 1.029, 1.290, 1.638, 1.883, 2.360, 2.857, 3.476, 3.971, 4.466 In
Nominal Wall Thickness1.79, 1.90, 2.16, 2.29, 2.41, 3.56mm
0.070, 0.075, 0.085, 0.090, 0.095, 0.140 In
Length Without Coupling3.030, 3.025, 3.010, 3.005 m
9 ft 11-1/4in, 9 ft 11 in, 9 ft 10-1/2 in, 9 ft 10-1/4 in
Nominal Weight2.81, 3.81, 5.4, 7.17, 8.80, 11.61, 20.00, 24.63, 28.53, 31.75 kg/pc
Nominal Wt. Per 100 Ft. (30.5M)28.10, 38.10, 54.00, 71.70, 88.00, 116.10, 200.00, 246.30, 285.30, 317.50 kg
62.00, 84.00, 119.00, 158.00, 194.00, 256.00, 441.00, 543.00, 629.00, 700.00 lb
Quantity10, 5 Primary Bundle
350, 250, 170, 135, 110, 80, 37, 30, 24 Master Bundle
NA
NA
NA
Company Installation Minimum Order Cover area
(Steel Manufacturer)No0Cyberjaya, Johor, Kedah, Kelantan, Kuala Lumpur, Labuan, Malacca, Negeri Sembilan, Pahang, Penang, Perak, Perlis, Putrajaya, Sabah, Sarawak, Selangor, Terengganu
