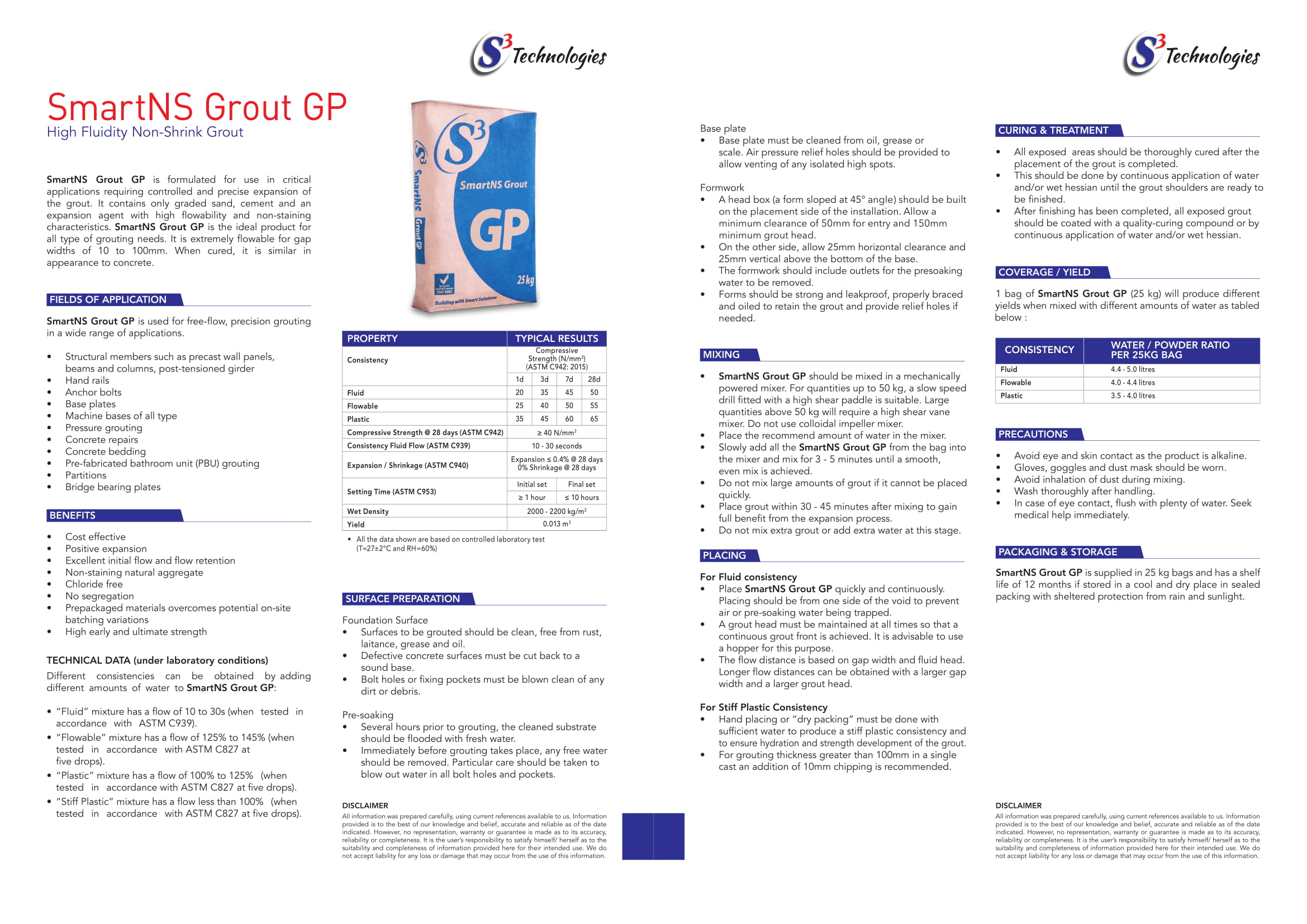

SmartNS Grout GP | Non Shrink Cement Grout S3 Technologies
SmartNS Grout GP is a non-shrink cement grout that formulated for use in critical applications requiring controlled and precise expansion of the grout. It contains only graded sand, cement and an expansion agent with high flowability and non-staining characteristics. SmartNS Grout GP is the ideal product for all type of grouting needs. It is extremely flowable for gap widths of 10 to 100mm. When cured, it is similar in
appearance to concrete.
appearance to concrete.
SmartNS Grout GP is used for free-flow, precision grouting in a wide range of applications which includes structural members such as precast wall panels, beams, and columns, post-tensioned girder, handrails, anchor bolts, Baseplates, Machine bases of all type, Pressure grouting, Concrete repairs, Concrete bedding, Pre-fabricated bathroom unit (PBU) grouting, Partitions and Bridge bearing plates.
Grout
Cement, Graded sand, Expansion agent
NA
Feature | Performance |
---|---|
Cost saving | Yes |
Environmental friendly | chloride free |
High bonding strength | Positive expansion, No segregation |
High workability | Excellent initial flow and flow retention |
Consistent quality | Prepackaged materials overcome potential on-site batching variations |
Specification | Properties |
---|---|
Consistency Compressive Strength (N/mm2 ) (ASTM C942: 2015) | 1d, 3d, 7d, 28d 20, 35, 45, 50 for Fluid 25, 40, 50, 55 for Flowable 35, 45, 60, 65 for Plastic |
Compressive Strength @ 28 days (ASTM C942) | ≥ 40 N/mm2 |
Consistency Fluid Flow (ASTM C939) | 10 - 30 seconds |
Expansion / Shrinkage (ASTM C940) | Expansion ≤ 0.4% @ 28 days 0% Shrinkage @ 28 days |
Setting Time (ASTM C953) | Initial set ≥ 1 hour Final set ≤ 10 hours |
Wet Density | 2000 - 2200 kg/m² |
Yield | 0.013 m³ |
Per bag Weight | 25 kg |
Shelf life | 12 months 1 year |
NA
NA
NA
Company | Installation | Minimum Order | Cover area |
---|---|---|---|
(Supplier and Trading House) | No | 0 | Cyberjaya, Johor, Kedah, Kelantan, Kuala Lumpur, Malacca, Negeri Sembilan, Pahang, Penang, Perak, Perlis, Putrajaya, Terengganu |
No Result found. |
No Photo & Brochure available
