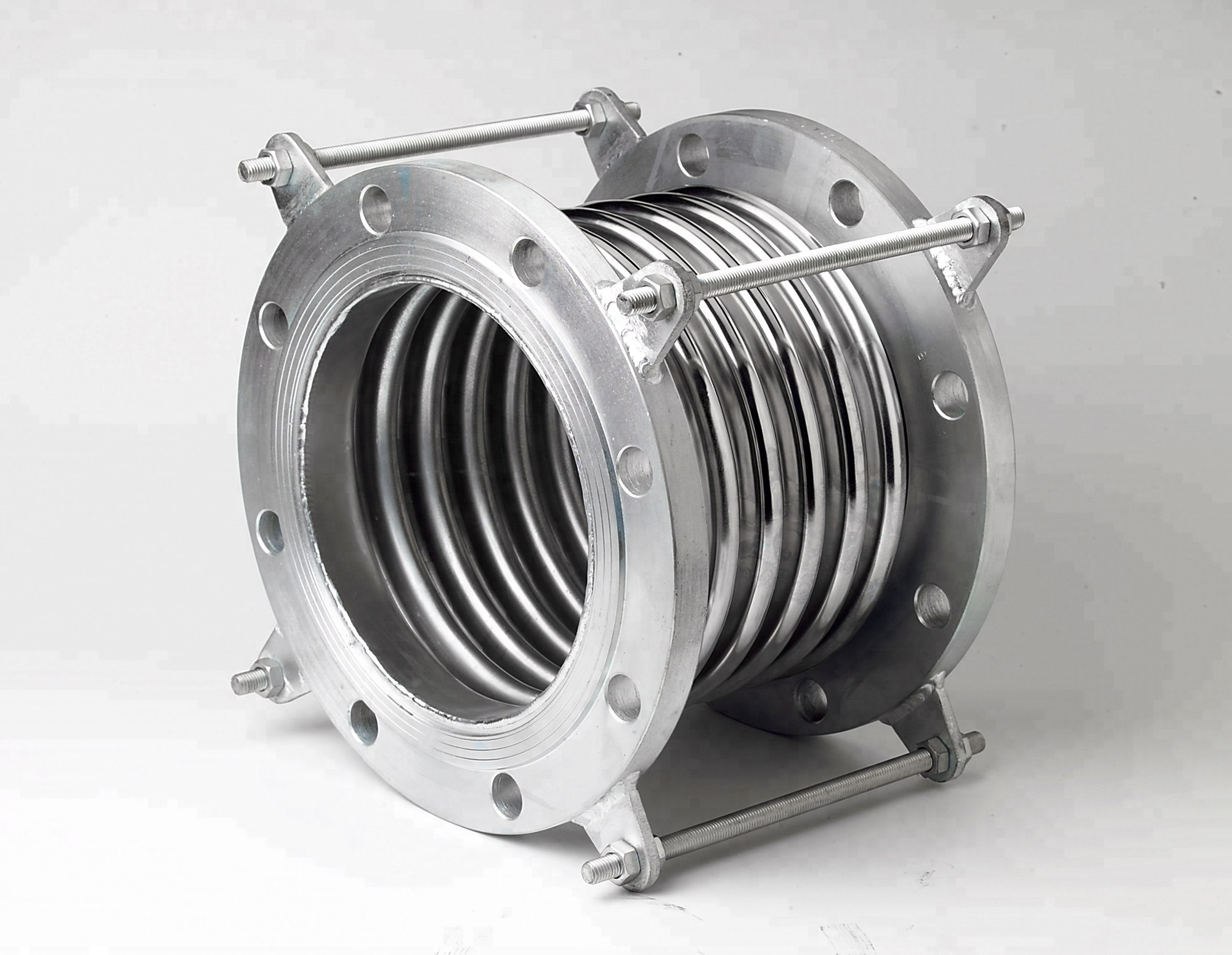

Stainless Steel Expansion Bellow and Joint | Unigawa SS Bellow Unigawa
Unigawa stainless steel expansion joint is made of SUS304 material and it has a lower elasticity coefficient, high temperature, and high pressure resistance which makes a long service life in a piping system.
It is applied to absorb the expansion of the HTM fluid pipeline.
Hose Joint
SUS304, SS400
• Stainless Steel Bellows
• Stainless Steel Flanges
• Stainless Steel Tube Ends
• Stainless Steel Internal Sleeve
• Stainless Steel Tie Rods
| Feature | Performance |
|---|---|
| Corrosion resistant | Yes |
| Specification | Properties |
|---|---|
| Nominal Bore (mm) | 40 - 600 |
| Nominal Bore (ins) | 1 1/2 - 24 |
| Total Length (mm) | 350 - 500 |
| Bellows O.D (mm) | 58 - 666 |
| Force to Compress (kg) | 75 - 3956 |
| Effective Area (cm²) | 17.6-3167 |
| Axial Movement (mm) | +10 -40 |
| Working Pressure (kg/cm²) | 16 |
