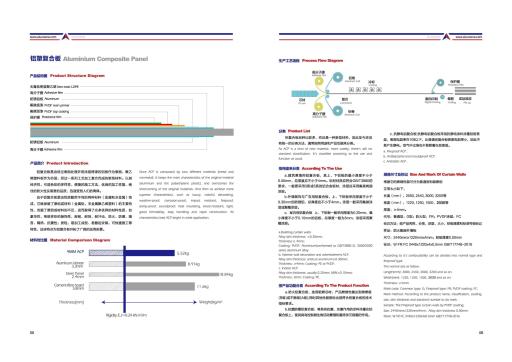

Aluminum Composite Panel is composed of two different materials (metal and nonmetal). It keeps the main characteristics of the original material (aluminum and the polyethylene plastic) and overcomes the shortcoming of the original materials. And then to achieve more superior characteristics, such as luxury, colorful decorating, weather-proof, corrosion-proof, impact resistant, fireproof, damp-proof, soundproof, heat insulating, shock-resistant, light, good formability, easy handling, and rapid construction. All these characteristics have lead Aluminum Composite Panel to a brighter future.

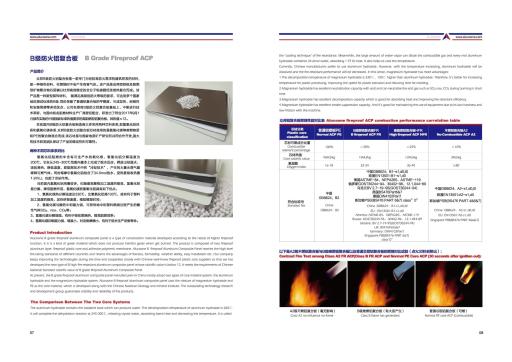

Alucoone B grade fireproof aluminum composite panel is a type of construction material developed according to the needs of higher fireproof function. It is is a kind of green material which does not produce harmful gases when get burned. The product is composed of two fireproof aluminum layer, fireproof plastic core, and adhesive polymeric membrane. Alucoone B fireproof Aluminum Composite Panel reaches the high-level fire-rating standards of different countries and retains the advantages of flatness, formability, weather ability, easy installation etc. Our company keeps improving the technologies during the time and cooperates closely with Chinese well-know fireproof plastic core suppliers so that we have developed the new type of B high fire-retardant aluminum composite panel whose calorific value is below 12. It meets the requirements of China National Standard calorific value of B grade fireproof Aluminum Composite Panel. At present, the B grade fireproof aluminum composite pane! manufacturers in China mostly adopt two types of core material system: the aluminum hydroxide and the magnesium hydroxide system. Alucoone B fireproof aluminum composite pane! uses the mixture of magnesium hydroxide and Polyethylene as the core material, which is developed along with the China National Geology and mineral Institute. The outstanding technology research and development group guarantees stability and reliability of the products. The aluminum hydroxide contains the oxidative base which can produce water. The decomposition temperature of aluminum hydroxide is 200°C. It will complete the dehydration reaction at 245-300 C, releasing crystal water, absorbing latent heat and decreasing the temperature. A large amount of water vapor can dilute the combustible gas and every mol aluminum hydroxide combines 34.6mol water, absorbing 1.97 KJ heat. It also helps to cool the temperature. Currently, Chinese manufacturers prefer to use aluminum hydroxide. However, when the temperature rises to a certain point, aluminum hydroxide will be dissolved and the fire-retardant properties will be decreased. In this sense, magnesium hydroxide has more advantages. The decomposition temperature of magnesium hydroxide is 330° C, 100°C higher than aluminum hydroxide. Therefore, it's high temperature are better for plastic processing, which improves the speed of plastic extrusion and reducing the time for molding. Magnesium hydroxide has excellent neutralization capacity towards acid and can neutralize the acid gas such as SO2, NOx, CO2 during burning in a short time. Magnesium hydroxide has excellent decomposition capacity that allows it better for absorbing heat and improving fire-retardant efficiency. Magnesium hydroxide has excellent smoke suppression capacity. It has low hardness and low friction as a piece of equipment that allows it to have a longer lifespan.

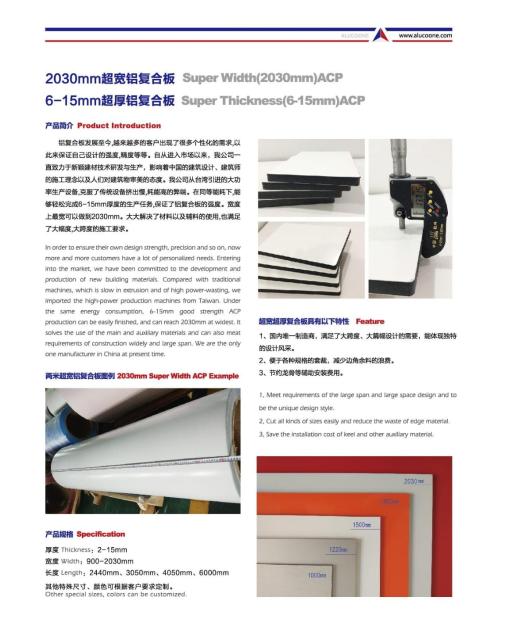

In order to ensure their own design strength, precision and so on, now more and more customers have a lot of personalized needs. Entering into the market, we have been committed to the development and production of new building materials. Compared with traditional machines, which is slow in extrusion and of high power-wasting, we imported the high-power production machines from Taiwan. Under the same energy consumption, 6-15mm good strength ACP production can be easily finished and can reach 2030mm at widest. It solves the use of the main and auxiliary materials and can also meet the requirements of construction widely and large span. We are the only one manufacturer in China at present time.

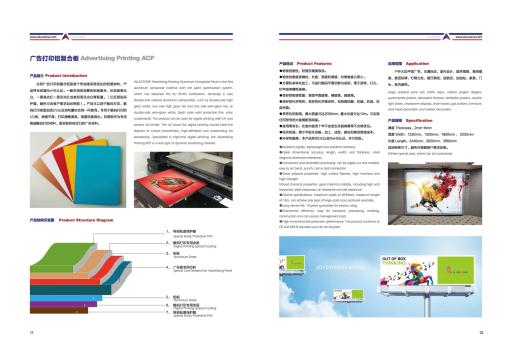

Alucoone Advertising Printing Aluminium Composite Panel is the first aluminum composite material with the print optimization system. It has obtained the EU ROHS certification. Generally, it uses double-side colored aluminium composition, such as double-sided high gloss white, one side high glosses red and one side semi-gloss red, or double-side semi-gloss white. (both sides have a protective film and the color can be customized). The product can be used for digital printing with UV and solvent ink binder. The UV board that use for digital printing will have a smooth surface, high-definition, and outstanding ink absorbency. The Advertising Printing ACP is a new type of dynamic advertising material that Specialized for high-end digital printing.

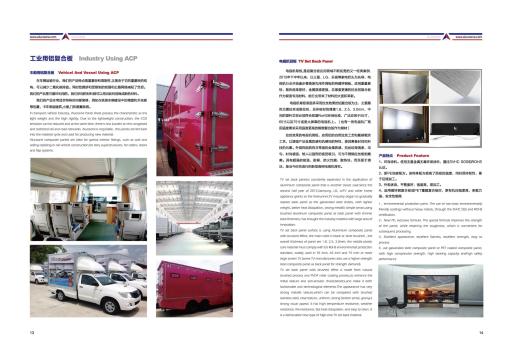

In transport vehicle Industry, Alucoone Panel sheet possess the characteristic as the lightweight and the high rigidity. Due to the lightweight construction, the CO2 emission can be reduced and at the same time, there is less burden on the congested and restricted rail and road networks. Alucoone is recyclable, the panels are fed back into the material cycle and used for producing new material. Alucoone composite panels are ideal for special interior fittings, such as wall and Ceiling cladding in rail vehicle construction, for lorry superstructures, for cabins, doors and flap systems.

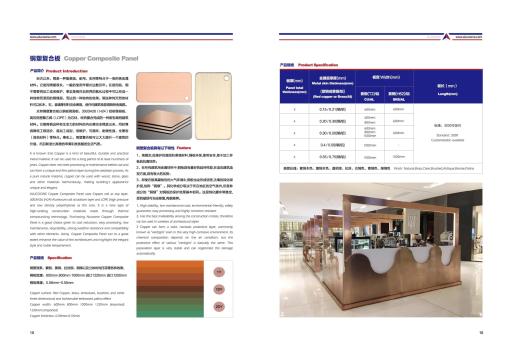

Copper is a wonderful and beautiful metal, it is a durable and valuable metal material. It normal lifespan could last hundreds of years if the environment is ideal. Copper does not require processing or maintenance to use and can form a unique and firm patina layer during the oxidation process. As a purely natural material, copper can be used with wood, stone, glass and other materials harmoniously to make building's appearance unique and elegant. Alucoone Copper Composite Panel uses the Copper sheet as a top layer, 3003H26 (H24) Aluminum sheet as the bottom layer and LDPE (high pressure and low-density polyethylene) as the core, It is a new type of high-ranking construction materials made through thermal compounding technology. Purchasing Alucoone Copper Composite Panel is a good choice given its cost saving, easy processing, low maintenance, recyclability, strong weather resistance and well compatibility with other elements. Using Copper Composite Panel can greatly enhance the value of building and highlight the elegant style and noble temperament of the design.

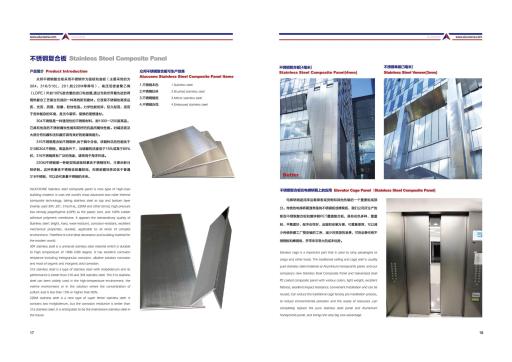

ALUCOONE Stainless steel composite panel is a new type of high-class building material. It uses the world's most advanced two rollers thermal composite technology, taking stainless steel as top and the bottom layer (mainly used 304, 201, 316/316L, 220M, and other items), high-pressure low-density polyethylene (LDPE) as the plastic core, and 100% rubber adhesive polymeric membrane. It appears the extraordinary quality of Stainless steel: bright, hard, wear-resistant, corrosion-resistant, excellent mechanical properties, durable, applicable to all kinds of complex environment. Therefore it is the ideal decoration and building material for the modern world. 304 stainless steel is a universal stainless steel material which is durable to the high temperature of 1000-1200 degree. It has excellent corrosion resistance including intergranular corrosion, alkaline solution corrosion and most of the organic and inorganic acid corrosion. 316 stainless steel is a type of stainless steel with molybdenum and its performance is better than 310 and 304 stainless steel. The 316 stainless steel can be widely used in the high-temperature environment, the marine environment or in the solution where the concentration of sulfuric acid is less than 15% or higher than 85%. 220M stainless steel is a new type of super ferrite stainless steel. Although It contains low molybdenum, the corrosion resistance is better than 316 stainless steel. It is anticipated to be the mainstream stainless steel in the future.

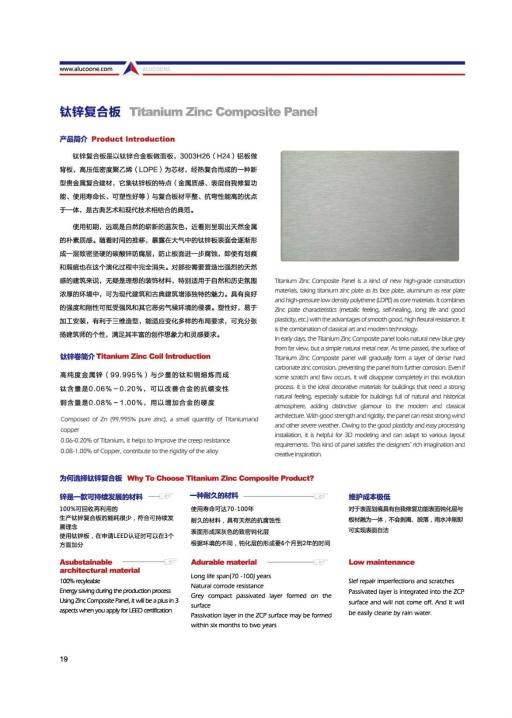

Titanium Zinc Composite Panel is a kind of new high-grade construction materials, taking titanium zinc plate as its faceplate, aluminum as rear plate and high-pressure low-density polyethylene (LDPE) as core materials. It combines Zinc plate characteristics (metallic feeling, self-healing, long life, and good Plasticity, etc.) with the advantages of smooth good, high flexural resistance. It is a combination of classical art and modern technology. In early days, the Titanium Zinc Composite panel looks natural new blue-grey from far view, but a simple natural metal near. As time passed, the surface of Titanium-Zinc Composite pane! will gradually form a layer of dense hard carbonate zinc corrosion, preventing the panel from further corrosion. Even if some scratch and flaw occur, it will disappear completely in this evolution process. It is the ideal decorative materials for buildings that need a strong natural feeling, especially suitable for buildings full of natural and historical atmosphere, adding distinctive glamour to the modem and classical architecture. With good strength and rigidity, the panel can resist strong wind and other severe weather. Owing to the good plasticity and easy processing installation, it is helpful for 3D modeling and can adapt to various layout requirements. This kind of panel satisfies the designersâ?? rich imagination and creative inspiration.

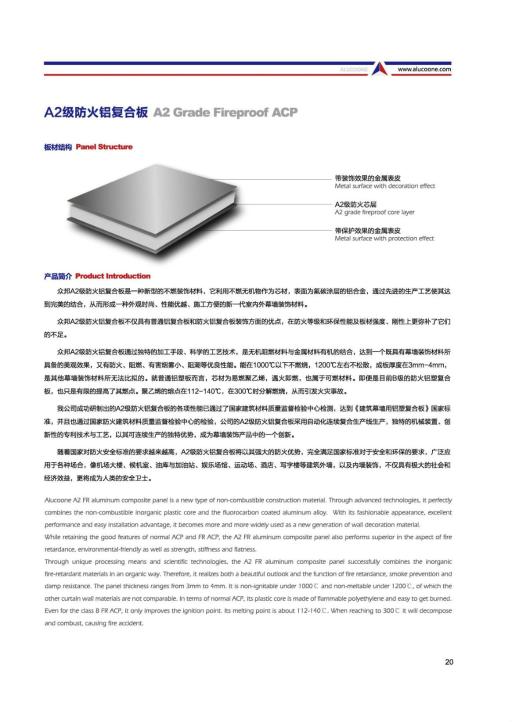

A2 Grade Fireproof aluminum composite panel is Alucoone new type of non-combustible construction material. Through advanced technologies, it perfectly combines the non-combustible inorganic plastic core and the fluorocarbon coated aluminum alloy. With its fashionable appearance, excellent performance and easy installation advantage, it becomes more and more widely used as a new generation of wall decoration material. While retaining the good features of normal Aluminium Composite Panel and Fire-resistant Aluminium Composite Panel, the A2 Fire Resistant Aluminum Composite Panel also performs superior in the aspect of fire retardance, environmental-friendly as well as strength, stiffness, and flatness. Through unique processing, the A2 Fire Resistant Aluminum Composite Panel successfully combines the inorganic fire-retardant materials in an organic way. Therefore, it realizes both a beautiful outlook and the function of fire retardance, smoke prevention, and damp resistance. The panel thickness ranges from 3mm to 4mm. It is non-ignitable under 1000 C and non-meltable under 1200°C, of which the other curtain wall materials are not comparable. In terms of normal Aluminium Composite Panel, its plastic core is made of flammable polyethylene and easy to get burned. Even for the class B Fire Resistant Aluminum Composite Panel, it only improves the ignition point. It's melting point is about 112-140°C. When reaching to 300 it will decompose and combust, causing a fire accident. Our company has successfully developed the A2 FR aluminum composite panel, which has passed the test from the National Building Materials Quality Supervision and Inspection Center, reached the standards of the National Building Curtain Wall Use Aluminum Composite Panel Criteria, and also passed the test from the National Fireproof Construction Material Inspection Center. Our A2 FR aluminum composite panel production line has an advantage of automatic, continuous and high effective production. With the unique mechanical device, creative patented technology and advantage of continuable production, our company becomes a pioneer in the field of innovative wall decoration products. As the national fire safety standards becoming higher and higher, the A2 FR aluminum composite panels with its superior fire-retardant and environmental-friendly advantages are widely used in various occasions, such as airports, lounges, oil depots, petrol stations, entertainment venues, stadiums, hotels, office buildings facade as well as interior decoration. Its superiorities are more than just social and economic benefits, it is believed the A2 FR aluminum composite panels will become the safeguard of human beings.

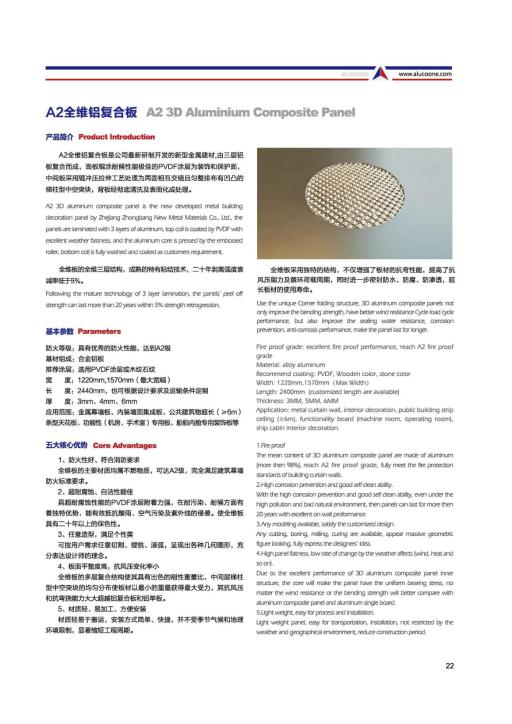

A2 3D Aluminum Composite Panel is the newly developed metal building decoration panel by Zhejiang Zhongbang New Metal Materials Co., Ltd., the panels are laminated with 3 layers of aluminum, the top coil is coated by PVDF with excellent weather fastness, and the aluminum core is pressed by the embossed roller, bottom coll is fully washed and coated as customers requirement. Following the mature technology of 3 layer lamination, the panelsâ?? peel off strength can last more than 20 years within 5% strength retrogression. Use the unique Comer folding structure, 3D aluminum composite panels not only improve the bending strength but have better wind resistance and also improve the sealing water resistance, corrosion resistant, anti-osmosis performance, make the panel last for longer.
